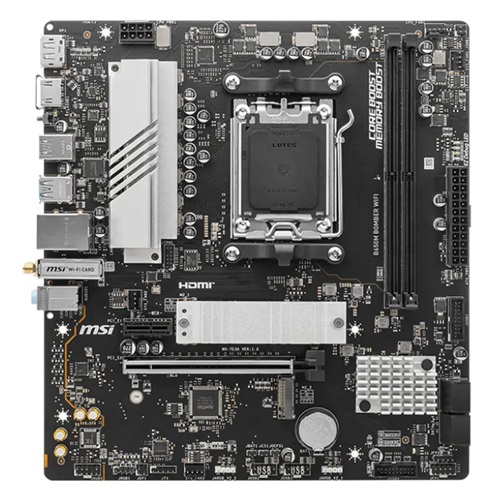

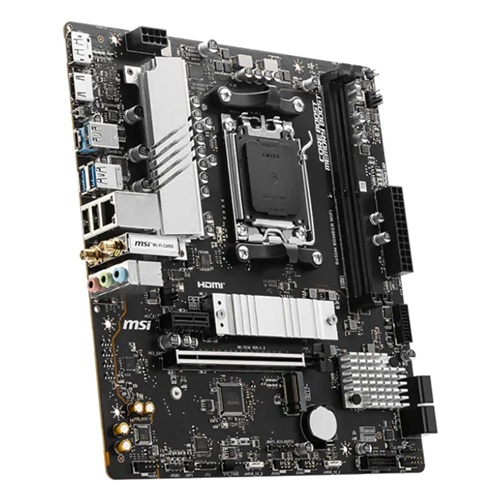

MSI PRO B650M BOMBER WIFI, mATX, AMD AM5, 2xDDR5, 2xM.2, 4xSATA 6Gb/s, RAID, 2xPCIe, 1xHDMI, 1xDP, Wireless AX+Bluetooth, 1xUSB-C, 2xUSB2.0, 3xUSB-A
The MSI Pro B650M-Bomber WiFi AM5 Motherboard is designed to support AMD Ryzen Desktop Processors, featuring Dual Channel DDR5 memory with overclocking capabilities up to 7800+MHz. With Core Boost and Memory Boost technologies, this motherboard delivers superior performance and stability. Enjoy lightning-fast gaming with PCIe 4.0 support and 2.5G LAN connectivity. The Audio Boost feature provides studio-grade sound quality for an immersive gaming experience, while Steel Armor protects your VGA cards. Upgrade to the MSI Pro B650M-Bomber WiFi for a superior gaming setup.
Delivery
We ship Australia-wide with Australia Post and StarTrack. Most orders are dispatched within 1 business day and arrive in 1-5 business days depending on your location. Free shipping on orders over $100 (AUD).
Local pickup is available from our Brisbane store by appointment: 6/8-14 St Jude Court, Browns Plains QLD 4118.
Returns & Warranty
Change of mind: return unopened, unused items in original packaging within 14 days of delivery for a refund or exchange (return postage is paid by the customer).
Faulty items: your rights under the Australian Consumer Law are not affected. Faulty products are covered by manufacturer warranty and the consumer guarantees under the ACL. Contact us and we will arrange a repair, replacement or refund.
Contact
TECH ASYST COMPUTERS
Phone: 07 3711 5377
Email: sales@techasyst.com.au
The MSI Pro B650M-Bomber WiFi AM5 Motherboard is designed to support AMD Ryzen Desktop Processors, featuring Dual Channel DDR5 memory with overclocking capabilities up to 7800+MHz. With Core Boost and Memory Boost technologies, this motherboard delivers superior performance and stability. Enjoy lightning-fast gaming with PCIe 4.0 support and 2.5G LAN connectivity. The Audio Boost feature provides studio-grade sound quality for an immersive gaming experience, while Steel Armor protects your VGA cards. Upgrade to the MSI Pro B650M-Bomber WiFi for a superior gaming setup.
Specifications
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|---|---|
| LAN | Realtek ® RTL8125BG 2.5Gbps LAN |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| Slot | 1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| Chipset | AMD B650 |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor |
| PCB Info | mATX 226mmx243.84mm |
| Warranty | 3 Year |

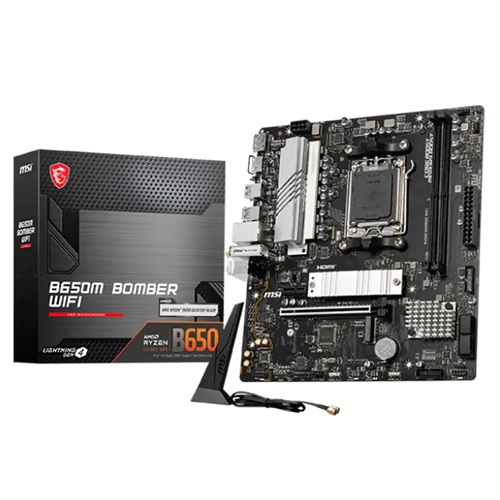

| Box content | MSI Pro B650M-Bomber WiFi Motherboard 1 x M.2 Clip Wi-Fi Antenna SATA Cable I/O Shield European Union Regulatory Notice Quick Installation Guide |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
| LED feature | 4x EZ Debug LED |

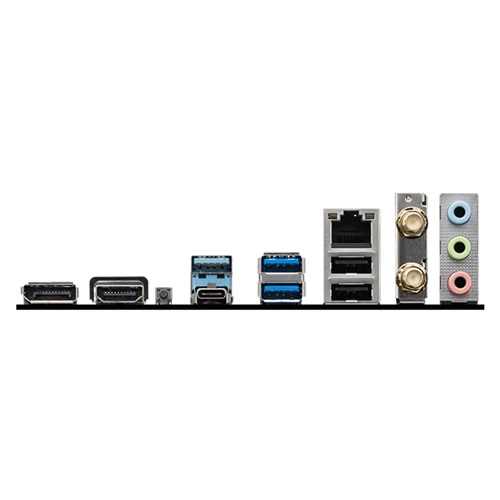

| Back panel ports | DisplayPort HDMI™ Flash BIOS Button USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio connectors USB 5Gbps Type-C USB 2.0 |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Operating system | Support for Windows ® 11 64-bit, Windows ® 10 64-bit |
| Wireless LAN & Bluetooth | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth ® 5.3** * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s for details. |
