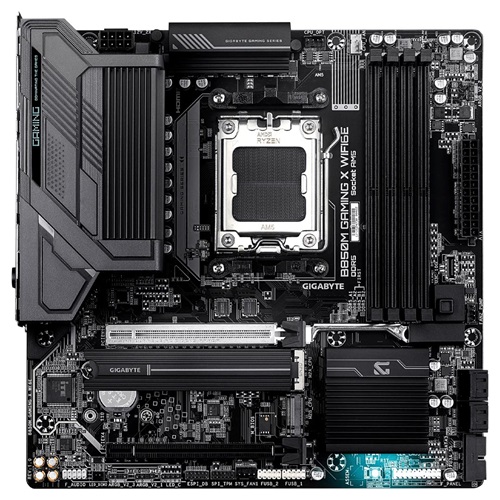

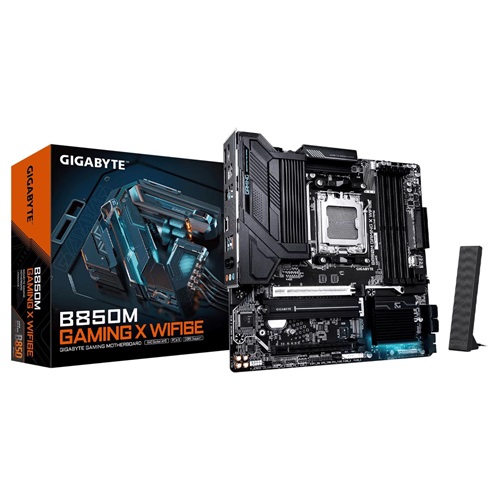

Gigabyte GA B850M Gaming X WiFi, Micro ATX, AMD AM5, 4xDDR5, 2xM.2, 4xSATA 6Gb/s, RAID, 2xPCIe, 1xHDMI, 2xDP, Wireless AX+Bluetooth, 2xUSB-C, 3xUSB3.2, 4xUSB 2.0
The Gigabyte B850M GAMING X WIFI6E motherboard is a powerhouse for gaming setups, featuring support for AMD Ryzen 7000/8000/9000 processors, 4 DDR5 slots, PCIe 5.0, 2.5 GbE LAN, WiFi 6E, Bluetooth 5.3, and more. With efficient heat dissipation and high-quality audio, it’s a top choice for gamers and tech enthusiasts alike.
Delivery
We ship Australia-wide with Australia Post and StarTrack. Most orders are dispatched within 1 business day and arrive in 1-5 business days depending on your location. Free shipping on orders over $100 (AUD).
Local pickup is available from our Brisbane store by appointment: 6/8-14 St Jude Court, Browns Plains QLD 4118.
Returns & Warranty
Change of mind: return unopened, unused items in original packaging within 14 days of delivery for a refund or exchange (return postage is paid by the customer).
Faulty items: your rights under the Australian Consumer Law are not affected. Faulty products are covered by manufacturer warranty and the consumer guarantees under the ACL. Contact us and we will arrange a repair, replacement or refund.
Contact
TECH ASYST COMPUTERS
Phone: 07 3711 5377
Email: sales@techasyst.com.au
The Gigabyte B850M GAMING X WIFI6E motherboard is a powerhouse for gaming setups, featuring support for AMD Ryzen 7000/8000/9000 processors, 4 DDR5 slots, PCIe 5.0, 2.5 GbE LAN, WiFi 6E, Bluetooth 5.3, and more. With efficient heat dissipation and high-quality audio, it’s a top choice for gamers and tech enthusiasts alike.
Specifications
| Audio | 7.1 Channel HD Audio |
|---|---|
| Chipset | AMD B850 |
| Cooling | Passive Heatsinks |
| Edition | GIGABYTE B850M GAMING X Wi-Fi 6E |
| Warranty | 3 Year |
| QPI Speed | N/A |
| Scan Code | LN154819 |
| CPU Socket | AM5 |
| Form Factor | MicroATX |
| Memory Type | DDR5 |
| Internal I/O | 1 x 24-pin (Power) 1 x 8-pin (Power) 3 x Addressable Gen 2 Header 1 x Clear CMOS jumper 1 x CPU Fan Connector 1 x CPU Water Pump/Fan Connector 1 x Front Panel Audio Header 1 x Front Panel Connector 1 x Reset Button 1 x RGB (RGBW) LED Strip Header 1 x TPM Header 2 x USB 2.0 Header 1 x USB 3.1 Gen1 Header 1 x USB 3.2 Gen2 Header |
| Model Number | B850M GAMING X WIFI6E |
| SATA Support | SATA3 |
| Water Cooled | No |
| Memory Channel | Dual (2) |
| Expansion Slots | 1 x M.2, 22-80/110, PCIe Gen4x4 1 x M.2, 22-80/110, PCIe Gen5x4 1 x PCIe 3.0 x16 (x4 Bandwidth) 1 x PCIe 5.0 x16 4 x SATA 6GB/s |
| Board Dimensions | 244 x 244 mm |
| RAID Support via | Yes |
| Memory Type (ECC) | Non-ECC |
| Memory Speed (Mhz) | DDR5 – 8200(OC) |
| NVIDIA SLI Support | N/A |
| Integrated Graphics | Requires Processor Graphics or Discrete GPU |

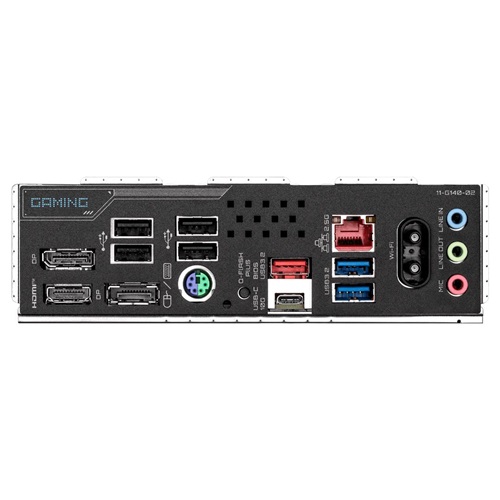

| Rear I/O Connectors | 2 x Antenna Ports 3 x Audio I/O 2 x DisplayPort 1.4 1 x HDMI 2.1 1 x PS/2 Keyboard/Mouse Combo 1 x Q-Flash Plus Button 1 x RJ-45 4 x USB 2.0 2 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C |
| Max. Memory Capacity | 256GB |
| Network Chip/Modules | 1 x 802.11ax WiFi 6E + BT5.3 |
| Storage Mode Support | RAID 0 RAID 1 RAID 10 RAID 5 |
| AMD CrossFire Support | N/A |
| Primary GPU Interface | PCIe 5.0 (x16) |
| Network Interface Type | 802.11ax Wi-Fi 6E LAN Wired 2.5 Gigabit LAN (10/100/1000/2500) |
| On-Board Graphics Connectors | DisplayPort 1.4 HDMI 2.1 |
