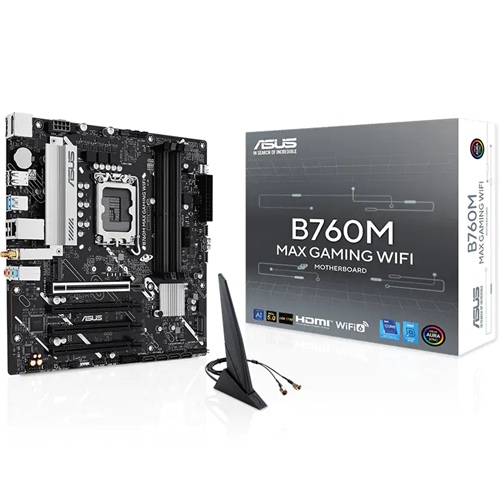

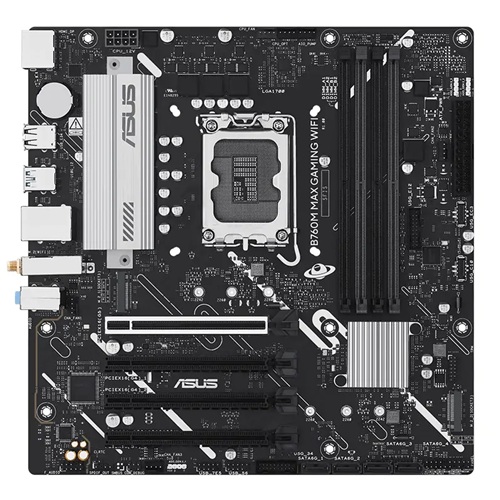

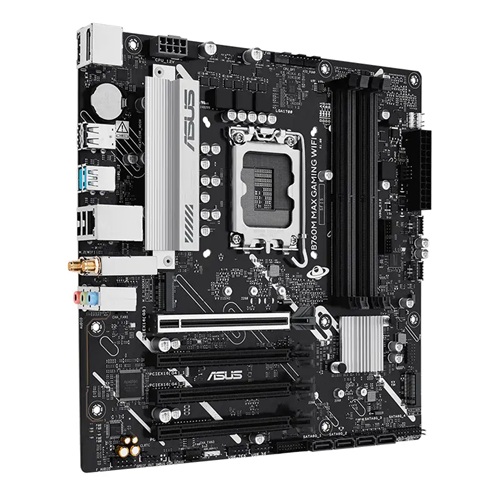

ASUS B760M MAX GAMING WIFI, Micro ATX, Intel LGA1700, 4xDDR5, 3x M.2, 4xSATA 6Gb/s, RAID, 4xPCIe, 1xHDMI, 1xDP, GbE LAN, Wireless AX+Bluetooth, 2xUSB-C, 6xUSB-A
ASUS B760M MAX GAMING WIFI, Micro ATX, Intel LGA1700, 4xDDR5, 3x M.2, 4xSATA 6Gb/s, RAID, 4xPCIe, 1xHDMI, 1xDP, GbE LAN, Wireless AX+Bluetooth, 2xUSB-C, 6xUSB-A
$261.00 inc. GST
This item: ASUS B760M MAX GAMING WIFI, Micro ATX, Intel LGA1700, 4xDDR5, 3x M.2, 4xSATA 6Gb/s, RAID, 4xPCIe, 1xHDMI, 1xDP, GbE LAN, Wireless AX+Bluetooth, 2xUSB-C, 6xUSB-A
$261.00 inc. GST
$261.00 inc. GST
$281.35 inc. GST
$363.30 inc. GST
$365.88 inc. GST
Delivery
We ship Australia-wide with Australia Post and StarTrack. Most orders are dispatched within 1 business day and arrive in 1-5 business days depending on your location. Free shipping on orders over $100 (AUD).
Local pickup is available from our Brisbane store by appointment: 6/8-14 St Jude Court, Browns Plains QLD 4118.
Returns & Warranty
Change of mind: return unopened, unused items in original packaging within 14 days of delivery for a refund or exchange (return postage is paid by the customer).
Faulty items: your rights under the Australian Consumer Law are not affected. Faulty products are covered by manufacturer warranty and the consumer guarantees under the ACL. Contact us and we will arrange a repair, replacement or refund.
Contact
TECH ASYST COMPUTERS
Phone: 07 3711 5377
Email: sales@techasyst.com.au
Estimated delivery
Oct 17 Oct 21
Shop securely with an Australian business. All prices in AUD inc. GST.
Description
Reviews (0)
Q & A
ASUS B760M MAX GAMING WIFI, Micro ATX, Intel LGA1700, 4xDDR5, 3x M.2, 4xSATA 6Gb/s, RAID, 4xPCIe, 1xHDMI, 1xDP, GbE LAN, Wireless AX+Bluetooth, 2xUSB-C, 6xUSB-A
Specifications
| CPU | Intel® Socket LGA1700 for Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|---|
| USB | Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| Chipset | Intel® B760 Chipset |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supportsSATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Graphics | 1 x DisplayPort** 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Warranty | 3 Year |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 2 x Screw packages for M.2 SSD |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slot (support x1 mode) Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – ProCool AURA Sync – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Two-Way AI Noise Cancelation AI Suite 3 – Digi+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| Back Panel I/O Ports | 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet 3 x Audio jacks |
| Wireless & Bluetooth | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Aura Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
Q & A
Ask a question
There are no questions yet
Related Products
MSI PRO B850M-P WIFI, mATX, AMD AM5, 4XDDR5, 3xM.2, 4xSATA 6G, RAID, 4xPCIe, 1xHDMI, 1xDP, 5G LAN, Wi-Fi 7+Bluetooth, 1xUSB-C, 3xUSB-A, 4xUSB2.0
$365.88 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT
Gigabyte X870 A ELITE WF7 ICE 1.0, ATX, AMD AM5, 4xDDR5, 4xM.2, 4xSATA 6Gb/s, RAID, 3xPCIe, 2xHDMI, GbE LAN, Wi-Fi 7+Bluetooth, 2xUSB-C, 6xUSB3.2, 4xUSB2.0
$590.22 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT
Gigabyte Z790 D AX, ATX, Intel LGA 1700, 4xDDR5, 3xM.2, 4xSATA, RAID, 2xPCIe, 1xHDMi, 1xDP, GbE LAN, Wireless AX+Bluetooth, 1xUSB-C, 5xUSB3.2, 2xUSB 2.0
$323.70 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT
MSI PRO B840-P WIFI, ATX, AMD AM5, 4xDDR5, 2xM.2, 4xSATA 6Gb/s, RAID, 5xPCIe, 1xHDMI, GbE LAN, Wi-Fi 7+Bluetooth, 1xUSB-C, 3xUSB-A, 4xUSB2.0, 3 Year Warranty
$295.10 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT
Gigabyte B650 AORUS ELITE AX V2, ATX, AMD AM5, 4xDDR5, 3xM.2, 4xSATA 6Gb/s, RAID, 3xPCIe, 1xHDMI, 1xDP, GbE LAN, Wireless AX+Bluetooth, 1xUSB-C, 7xUSB3.2, 4xUSB2.0
$409.50 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT
MSI PRO B760M-A WIFI DDR5, Micro ATX, Intel LGA 1700, 4xDDR5, 2xM.2, 4xSATA 6Gb/s, RAID, 3xPCIe, 2xHDMI, 2xDP, GbE LAN, Wireless AX+Bluetooth, 4xUSB3.0, 2xUSB2.0,
$275.30 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT
MSI PRO B650M BOMBER WIFI, mATX, AMD AM5, 2xDDR5, 2xM.2, 4xSATA 6Gb/s, RAID, 2xPCIe, 1xHDMI, 1xDP, Wireless AX+Bluetooth, 1xUSB-C, 2xUSB2.0, 3xUSB-A
$224.70 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT

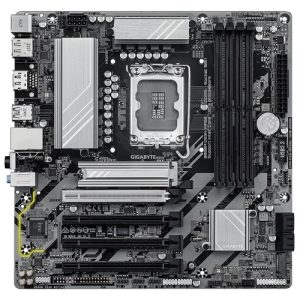

Gigabyte GA-B860M-DS3H-WIFI6E 1.0, Micro ATX, Intel LGA 1851, 4xDDR5, 2xM.2, 4xSATA 6Gbps, RAID, 4xPCIe, 1xHDMI, 2xDP, GbE LAN, Wireless AX+Bluetooth, 3xUSB3.2, 3xUSB2.0
