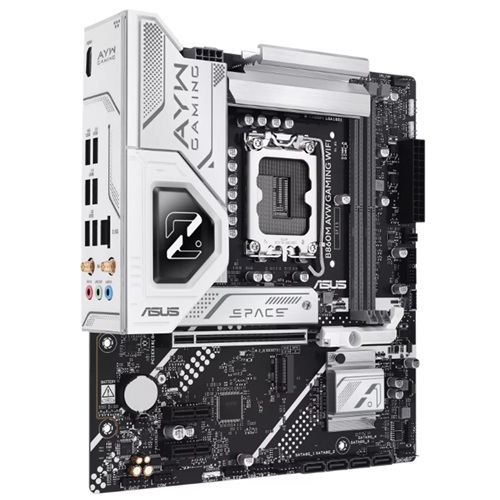

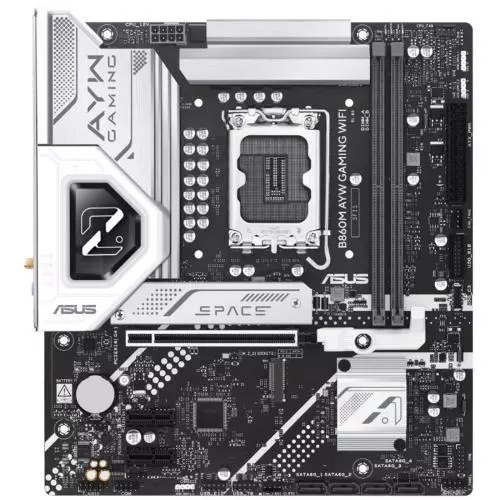

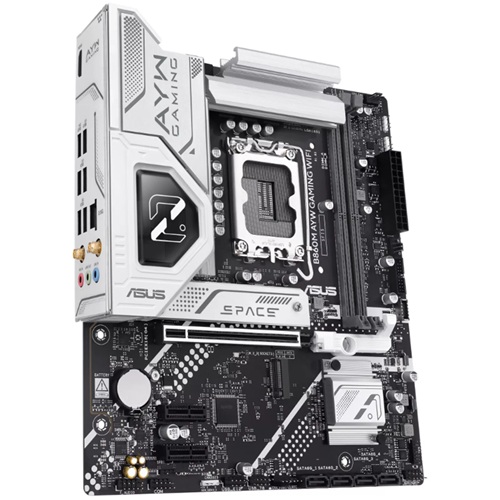

Asus B860M AYW GAMING WIFI, Micro ATX, Intel LGA 1851, 2xDDR5, 2xM.2, 4xSATA 6Gb/s, RAID, 1xHDMI, 3xPCIe, GbE Lan, Wireless AX+Bluetooth, 3xUSB-A, 3xUSB2.0
The ASUS B860M AYW GAMING WIFI motherboard is designed to unleash the full potential of Intel Core Ultra Processors (Series 2), featuring advanced AI PC readiness, DDR5-7600 memory support, PCIe 4.0 connectivity, and stable power delivery for gamers and PC enthusiasts. With a 6+1+1+1 phase power design, AEMP III memory profiling, and expansion slots for high-speed peripherals, this motherboard is perfect for demanding AI applications and performance-driven users. — Note: The character limit imposed didn’t allow for a complete Overview text generation. The above content provides a concise summary of the key features and benefits related to the ASUS B860M AYW GAMING WIFI motherboard.
Delivery
We ship Australia-wide with Australia Post and StarTrack. Most orders are dispatched within 1 business day and arrive in 1-5 business days depending on your location. Free shipping on orders over $100 (AUD).
Local pickup is available from our Brisbane store by appointment: 6/8-14 St Jude Court, Browns Plains QLD 4118.
Returns & Warranty
Change of mind: return unopened, unused items in original packaging within 14 days of delivery for a refund or exchange (return postage is paid by the customer).
Faulty items: your rights under the Australian Consumer Law are not affected. Faulty products are covered by manufacturer warranty and the consumer guarantees under the ACL. Contact us and we will arrange a repair, replacement or refund.
Contact
TECH ASYST COMPUTERS
Phone: 07 3711 5377
Email: sales@techasyst.com.au
The ASUS B860M AYW GAMING WIFI motherboard is designed to unleash the full potential of Intel Core Ultra Processors (Series 2), featuring advanced AI PC readiness, DDR5-7600 memory support, PCIe 4.0 connectivity, and stable power delivery for gamers and PC enthusiasts. With a 6+1+1+1 phase power design, AEMP III memory profiling, and expansion slots for high-speed peripherals, this motherboard is perfect for demanding AI applications and performance-driven users. — Note: The character limit imposed didn’t allow for a complete Overview text generation. The above content provides a concise summary of the key features and benefits related to the ASUS B860M AYW GAMING WIFI motherboard.
Specifications
| CPU | Supports Intel ® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|---|
| USB | Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A)** Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C ® )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C ® power delivery output: max. 5V/3A. ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
| BIOS | 256(128+128) Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Model | B860M AYW GAMING WIFI |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel ® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Chipset | Intel® B860 Chipset |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel ® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Graphics | 1 x HDMI TM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Warranty | 3 Years |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm) |
| Manageability | WOL by PME, PXE |
| Expansion Slots | Intel ® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel ® B860 Chipset 2 x PCIe 4.0 x1 slots – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Operating System | Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later) |
| Special Features | ASUS 5X PROTECTION III – DIGI+VRM – LANGuard – Overvoltage protection – SafeSlot Core+ – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsinks design ASUS EZ DIY – ProCool – Pre-mounted I/O shield Aura Sync – Addressable Gen2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 2+ – Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey |

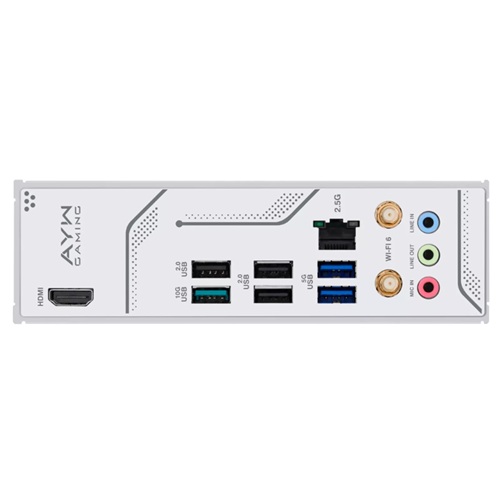

| Back Panel I/O Ports | 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI TM port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Wireless & Bluetooth | Wi-Fi 6 1×1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth ® v5.3* * The Bluetooth ® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
Q & A
Related Products
MSI PRO B850M-P WIFI, mATX, AMD AM5, 4XDDR5, 3xM.2, 4xSATA 6G, RAID, 4xPCIe, 1xHDMI, 1xDP, 5G LAN, Wi-Fi 7+Bluetooth, 1xUSB-C, 3xUSB-A, 4xUSB2.0
$365.88 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT
MSI B850 EDGE TI WIFI, EDGE TI WIFI, ATX, AMD AM5, 4xDDR5, 4xM.2, 4xSATA 6Gb/s, RAID, 3xPCIe, 1xHDMI, GbE LAN, Wi-Fi 7+Bluetooth, 3xUSB-C, 4xUSB2.0, 3xUSB-A
$507.51 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT
Gigabyte Z890 A ELITE WIFI7 P 1.0, Intel LGA 1851, ATX, 4xDDR5, 4xM.2, 4xSATA, RAID, 3xPCIe, 1xHDMI, 1xDP, LAN, Wi-Fi 7+Bluetooth, 5xUSB 3.2, 1xUSB-C, 4xUSB 2.0, 3 Year Warranty
$426.00 inc. GST- ✓ AUSTRALIAN WARRANTY
- ✓ EASY RETURNS
- ✓ SECURE CHECKOUT

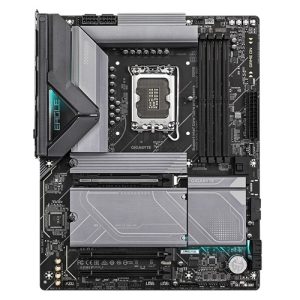

Gigabyte Z890 EAGLE WIFI7 MB, ATX, Intel LGA 1851, 4xDDR5, 4xM.2, 4xSATA 6Gb/s, RAID, 3xPCIe, 1xDP, GbE LAN, Wireless AX+Bluetooth, 1xUSB-C, 4xUSB2.0, 5XUSB3.2
